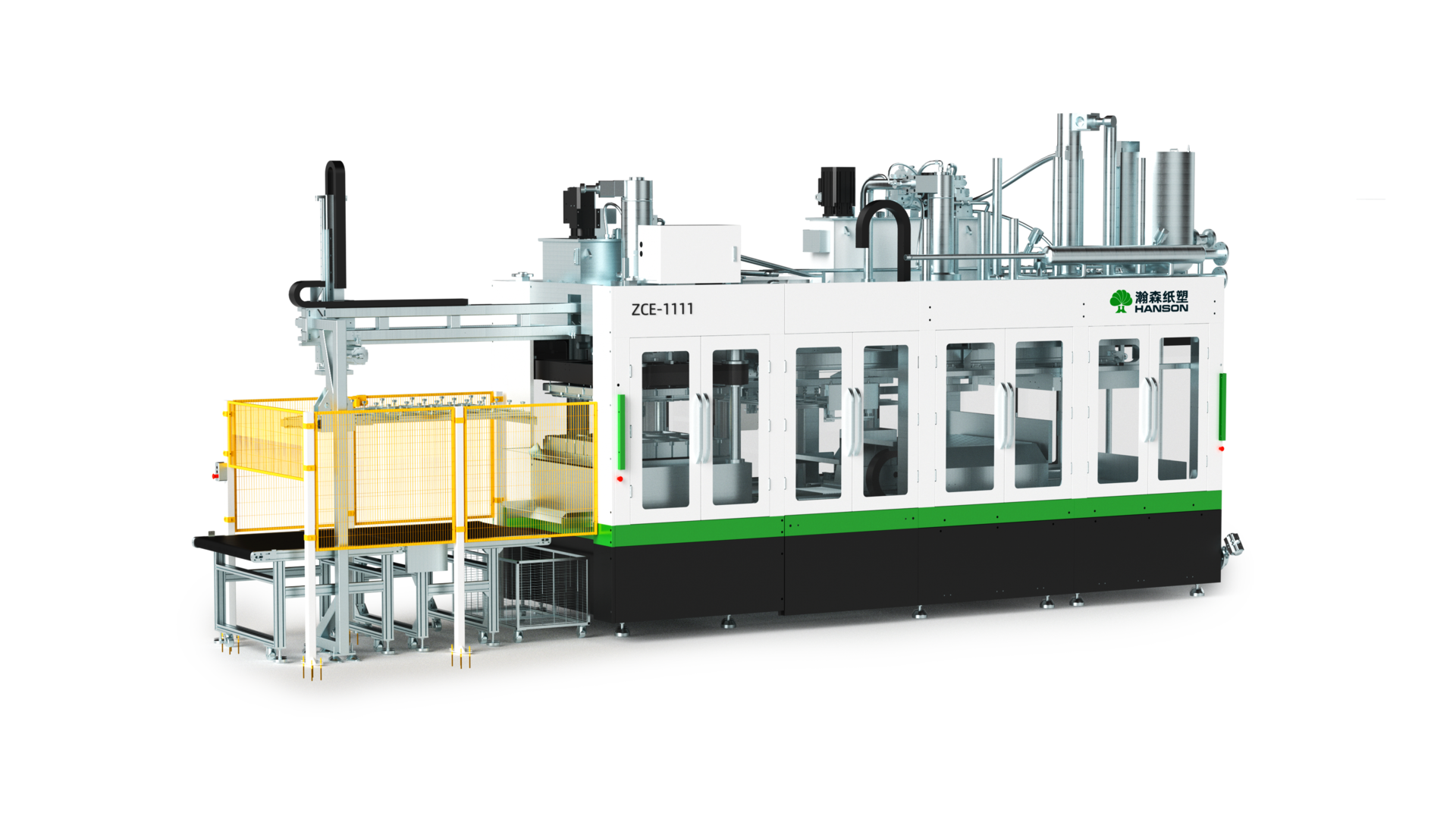

Plate / bowl / clamshell machine ZCE1111

HANSON ZCE1111 fully automatic pulp forming tableware machine. This machine has a cost-effective intelligent control system that can produce products flexibly, accurately and stably. At the same time, it is simple to operate and maintain, and can carry out remote intelligent production monitoring. The machine also adopts integrated design trimming and stacking functions, making it suitable for a variety of application scenarios, including disposable tableware, paper plates, paper bowls, fast food takeout boxes and lids, light meal packaging plates, supermarket fresh trays, branded food Packaging, cups and lids, cup holders and trays and more.

The main features of the machine include integrated design of trimming and stacking, efficient automation, reasonable machine layout, easy mold replacement, specially designed for uniform molding, and one-step hot press molding. In addition, the design of this machine focuses on product quality, energy conservation and environmental protection, and has a good structure designed for the entire machine, which can produce high-quality products. The hot pressing exhaust volume can be adjusted to prevent mold adhesion, and the trimming is accurate and good. In addition, special materials are used to reduce heat loss. At the same time, the machine also has the characteristics of good safety performance and smooth operation. It adopts a safety fence to ensure the safety of personnel and the smooth operation of the machine. In addition, it also has automatic fault detection function to ensure the smooth progress of the production process.

Advantages of Hanson Technology

Higher output , less consumption, wide application, perfect product quality

含水量下降更新后的

Wet product moisture

产能上升更新后的

Wet product moisture

热能耗下降更新后的

Consumption Less by

赃物下降更新后的

Dirt Less by

Commonly Used Raw Material
Primary Pulp Board from the following plants
The commercial primary pulp board for producing disposable tableware is usually chemical pulp or chlorine-free ECF pulp ,can be purchased from paper making manufacture. One-year plant fiber is the proven more proper raw material for pulp molded tableware production for the fiber length is shorter,like sugarcane bagasse fiber,bamboo fiber,wheat straw fiber,reed straw fiber or some offcut of office paper.Wood fiber or bamboo fiber would be added by certain ratio for producing some products of complex structure or deeper products.

Application

Paper Food Container/Compostable Food Container /Disposable Lunchbox /Paper Lunch Container/Take-out lunchbox/Ready Meal Packaging Bowl/Anti-leak Food Container/Leak-proof food container/Biodegradable Lunchbox/Supermarket Fresh Trays

Parameter

ZCE1111 Plate / bowl / clamshell machine

1

Outer dimension (L*W*H)

9400mm*2000mm*4100mm

2

Platen size

1100mm*1100mm

3

Forming method

reciprocating

4

Pulp feeding style

Quantitative grouting

5

Equipment weight

20T

6

Product transfer method

transfer in-mold

7

Forming pressure

40T

8

Hot pressing pressure

40T

9

Transmission power

35kw

10

Machine drive mode

Servo+hydraulic system

11

Control system

PLC+ touch screen

12

Drying method

Dry in-mold

13

Capacity

800-1000KG/22H

14

Cycle time

28-60 seconds/drop (depends on the product)

15

Max. product height

80mm

Production Flowchart

ONE-STOP SOLUTION ,TURNKEY PROJECT
播放视频

Finery Tableware Machine

Hanson pulp molding thermoforming technology make breakthrough of industrial bottleneck, based on specific product, the wet product moisture can be less than 60%, elctricity heating consumption(heating only) can be less than 1800kwh/ton finish product
