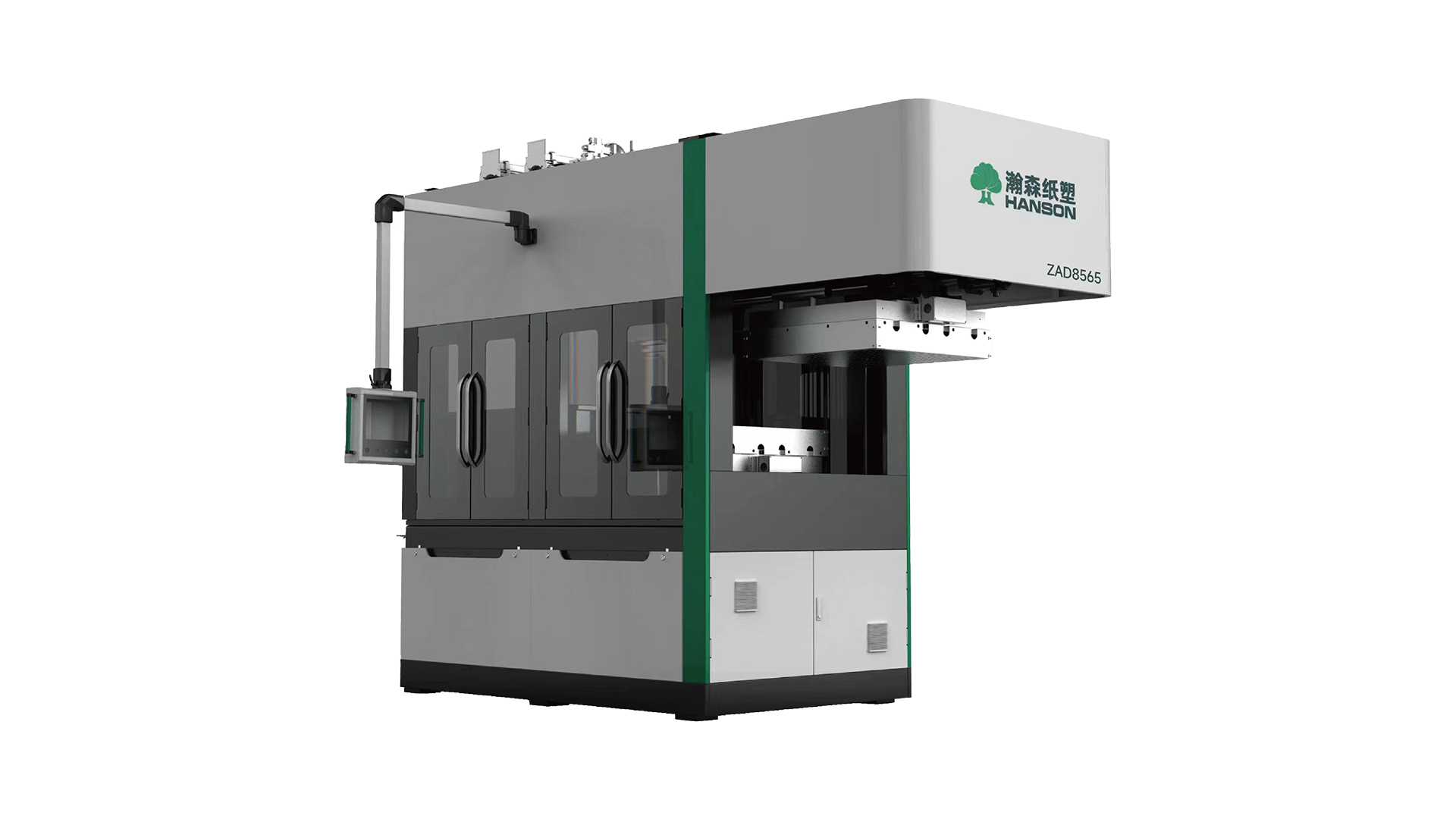

ZAD-8565 FULLY AUTOMATIC PULP MOLDING HIGH-END INDUSTRIAL PACKAGINGFORMING MACHINE
The ZAD-8565 is a full-automatic high-end industrial packaging equipment with forming and hot-pressing function. It realizes molding via precision pulp feeding, which not only reduces basis weight deviation but also simultaneously addresses the issues of pulp deterioration and contamination circulation.
With a reasonable template size, the equipment is suitable for maximizing the layout of various industrial pulp molded products, featuring high efficiency and high productivity. The entire equipment covers a small area, and its transfer template can be optionally equipped with a hot-pressing function. It boasts a stable structure, modular design, and few vulnerable parts, thus achieving the goals of easy operation and debugging, easy maintenance, and low failure rate.
Advantages of Hanson Technology
Higher output , less consumption, wide application, perfect product quality
6
0
%
Wet product moisture
3
0
%+
Capacity Up by
3
2
%-
Consumption Less by
3
0
%-
Dirt Less by
Application
Paper Plate/Compostable Food Tray /Disposable Tableware /Paper Plates And Bowls/Fast Food Take-away Box and Lid/Ready Meal Packaging Trays/Supermarket Fresh Trays/Branded Food Packaging/Cup and Lid/Cup Holder and Carriers/
| No. | Category | Parameter Description | Remarks | |
| 1 | Basic Parameters | Equipment model | ZAD-8565D | |
| Overall dimensions | L3479mm × W1514mm × H3803mm | |||
| Mold platen size | 850mm × 650mm | |||
| Machine weight | Approx. 5.5 T | |||
| Load distribution | 1990.5 kg/m² | |||
| 2 | Forming Method | Pulp feeding method | Metered (quantitative) pulp feeding | |
| Slurry suction method | Reciprocating suction | |||
| Drying method | In-mold drying | |||
| Heating method | Electric heating | |||
| 3 | Power / Drive Method | Forming | Servo electric cylinder, pressure 3 T | Servo electric cylinder |
| Hot pressing | Servo hydraulic cylinder, pressure 20 T | Hydraulic power unit | ||
| 4 | Products | Max. product height | 100mm | |
| Max. weight per mold | 500 g | At 3% pulp consistency | ||
| 5 | Electrical Requirements | Voltage / Frequency | AC 380V / 50Hz | |
| Installed power | 54.1 kW (heating power: 45 kW) | |||
| 6 | Compressed Air Requirements | Compressed air | 0.5 – 0.7 MPa | |
| Vacuum | -0.07 ~ -0.05 MPa | |||
| 7 | Water Requirements | Mold-washing high-pressure water | 1.2 MPa | Clean, ambient temperature |
| Cooling water | 60 – 80 L/min | Clean, ambient temperature | ||
Production Flowchart
播放视频
Finery Tableware Machine
Hanson pulp molding thermoforming technology make breakthrough of industrial bottleneck, based on specific product, the wet product moisture can be less than 60%, elctricity heating consumption(heating only) can be less than 1800kwh/ton finish product
