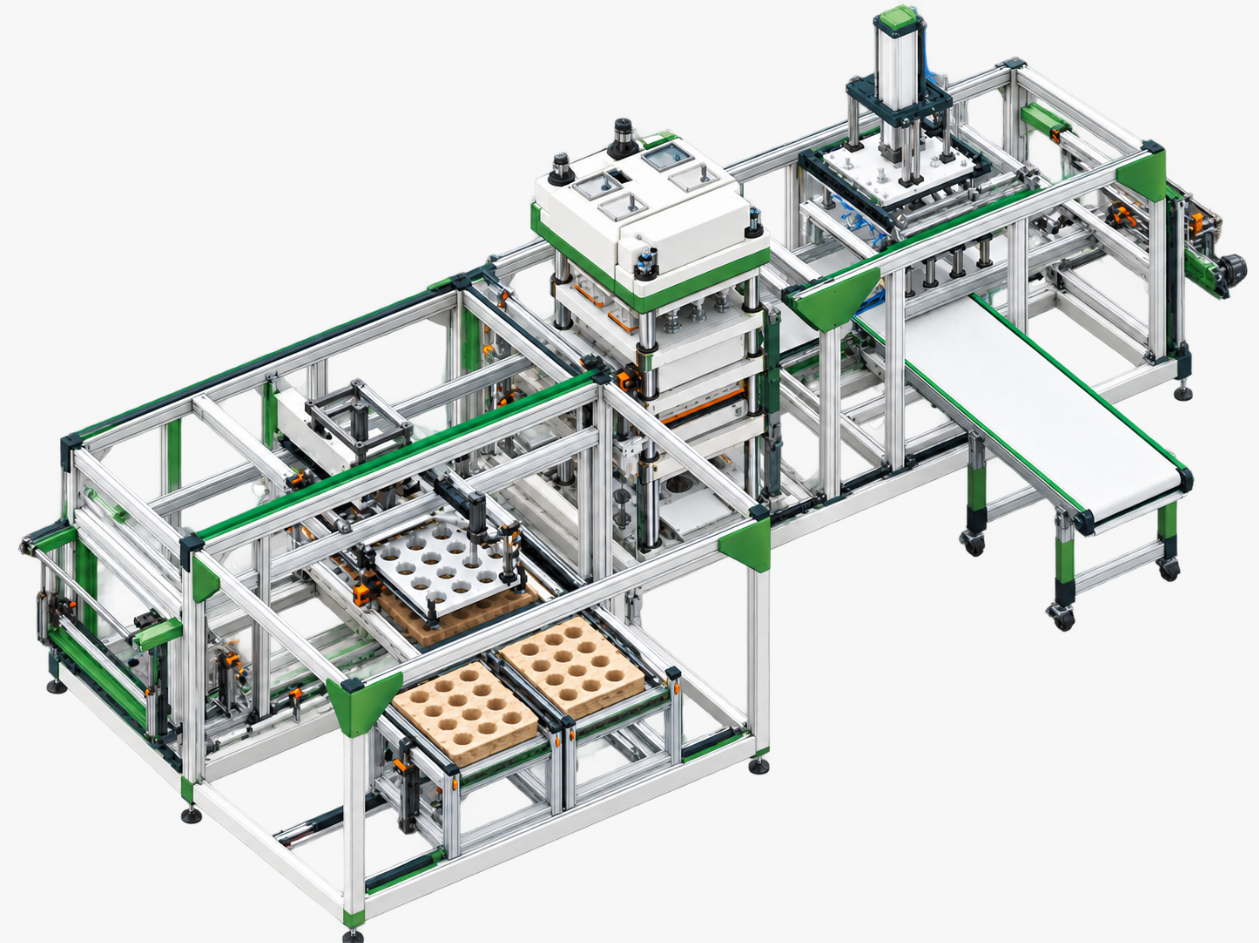

Fully Automatic Premium Laminating
Machine Production Line
Advantages of Products
We regard the demand of pulp molding production line is higher output , less energy consumption and stable performance of the machine,following this direction, we see highly important of our R&D.
3
0
%+
Capacity per sqm Up by
1
0
%
Heating Consumption Less by
1500
0
+
Mold Deep Cleaning Cycle
20000
0
+
Daily Output of Ф90mm lid
Main Technical Parameters
| No. | Category | Parameter | Specification | Remarks |
|---|---|---|---|---|
| 1 | Production Line Basic Parameters | Overall Dimensions | L 7000 mm × W 4000 mm × H 3000 mm | |
| Die Table Size | 1100 mm × 1100 mm | |||
| Machine Weight | 16 T | |||
| Station Configuration | 1 film unwinding + 1 laminating + 1 trimming + 1 finished-product stacking | |||
| 2 | Film Unwinding Station | Unwinding Drive | Servo | |
| 3 | Laminating Station | Lifting Drive | Servo | |
| Heating Method | Electric heating | |||
| Laminating Cycle | 15 s/mold | |||
| Film Types | PE, PET, PLA, PBAT, PP, EVOH film | |||
| 4 | Punching / Trimming Station | Lifting Drive | Servo | |
| Punching Force | 80 T | |||
| Hot-Press Stroke | 500 mm | |||
| Minimum Die Height | 90 mm | |||
| Adjustable Stroke | 150 mm | |||
| Max. Product Height | 80 mm | |||
| 5 | Workpiece | Production Capacity | Depends on product | As per product |
| Max. Stacking Height | 200 mm (incl. product height) | |||
| 6 | Others | Power Supply | AC 380 V, 50 Hz | |
| Installed Power | 80 kW | |||
| Control System | PLC + touch screen | |||
| Air Supply | Positive pressure 0.6~0.8 MPa; negative pressure −0.06~−0.05 MPa |
Production Flowchart
播放视频
Premium Package Machine
The main character of our premium industrial package production line is the accuracy in delivering products which allows the machine to produce products of complex structure and zero draft angle .
Why Choose Us
SMART DCS PULPING SYSTEM
Pulping system ,no backflow pulp,less dirt White water ,compressed air,vacuum system Auto feeding system,high pressure water system Intelligent DCS control
WHOLE PLANT DESIGN & LAYOUT
Project feasibility analysis & Tailored machine proposal Tailored ROI analysis Factory layout design Factory foundation/trench/pipeline design
MOLDED FIBER THERMOFORMING MACHINE
Molded Fiber Tableware Thermoforming Machine Pulp Molding Industrial Package Making Machine Molded Fiber Leak-proof Lid Making Machine
TOOLING DESIGN AND MANUFACTURING
Professional and Experienced Tooling Designer; Self-own High-precision Processing Center; Three-coordinate Way Detecting Mold.
POST-PROCESS AUTOMATION
Intelligent robot transfer,auto stacking; Automatic visual inspection equipment; Automatic counting,auto bagging; Auto boxing,auto packaging
TRANSFERRING KNOW-HOW
Hanson College with university tutors & courses; Training a team of technical personnel Guide installation,machine running and maintenance Comprehensive on-site technical support
