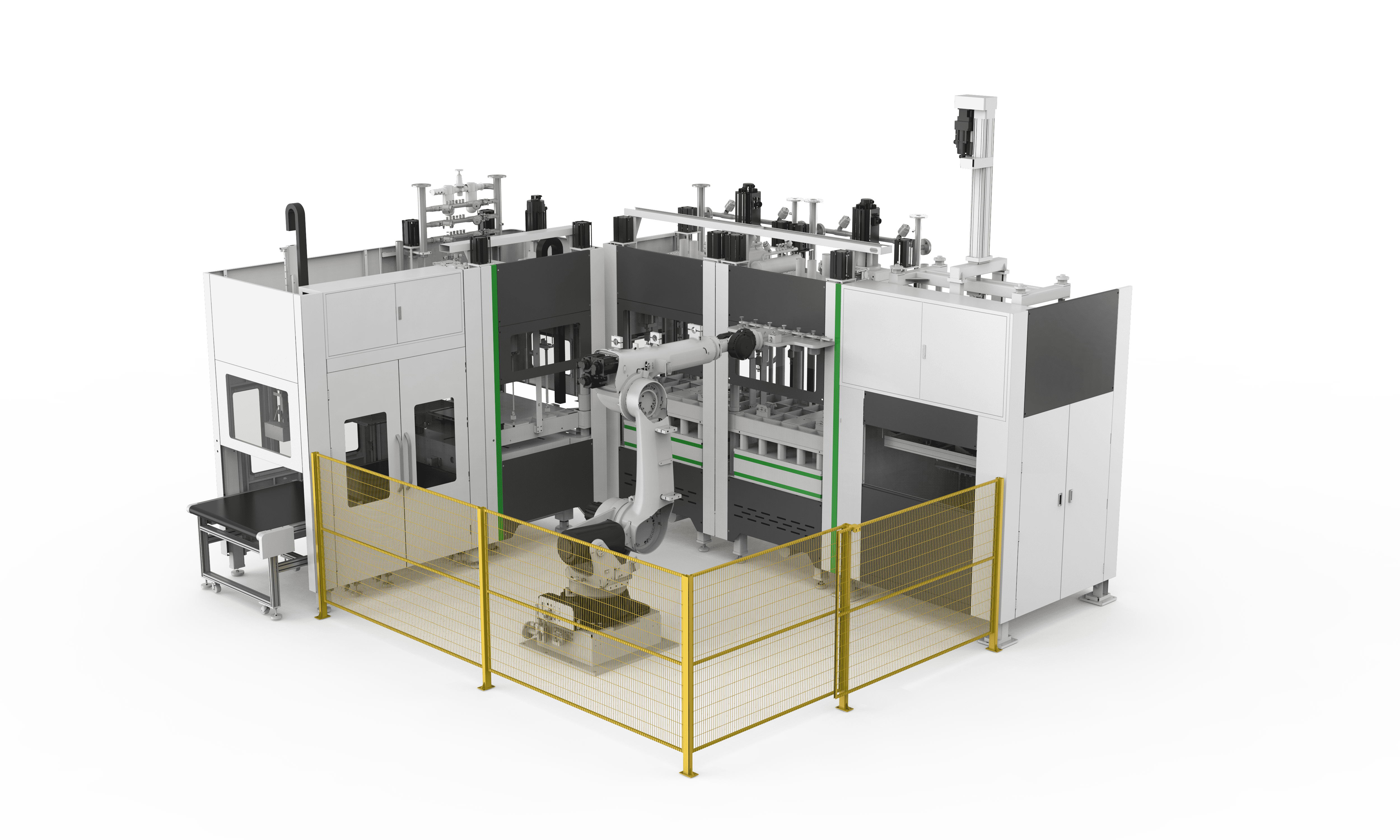

The ZBG-1111 production line is a fully automatic premium meal packaging production line featuring one molding station, two hot pressing stations, and one punching/trimming station, with robotic transfer. It is characterized by low energy consumption, high productivity, and high quality, suitable for manufacturing eco-friendly pulp molded tableware products such as paper plates, paper food containers, paper bowls, paper cups, and egg trays.
With full servo control, the entire machine ensures flexible, precise, and stable operation. Its reasonable mold plate size maximizes the layout for various meal packaging products. The equipment has a compact footprint, with molding, shaping, trimming, and stacking fully automated within the machine. Designed with a robust structure and modular design, it has few wearable parts, enabling easy operation, debugging, maintenance, and low failure rates.
ZBG-1111 FULLY AUTOMATIC PULP MOLDING PREMIUM TABLEWARE PRODUCTION LINE (FULL SERVO)
Advantages of Hanson Technology
Higher output , less consumption, wide application, perfect product quality
Wet product moisture
Wet product moisture
Consumption Less by
Dirt Less by
Application
Paper Food Container/Compostable Food Container /Disposable Lunchbox /Paper Lunch Container/Take-out lunchbox/Ready Meal Packaging Bowl/Anti-leak Food Container/Leak-proof food container/Biodegradable Lunchbox/Supermarket Fresh Trays
Parameter
| ZCF1111 Plate / bowl / clamshell machine | ||
| 1 | Outer dimension (L*W*H) | 6100mm*6500mm*3600mm |
| 2 | Platen size | 1100mm*1100mm |
| 3 | Forming method | |
| 4 | Pulp feeding style | Quantitative Pulp Feeding |
| 5 | Equipment weight | 26T |
| 6 | Product transfer method | |
| 7 | Forming pressure | 80T |
| 8 | Hot pressing pressure | 80T |
| 9 | Transmission power | |
| 10 | Machine drive mode | Servo |
| 11 | Control system | PLC+Touchscreen Control |
| 12 | Drying method | |
| 13 | Capacity | 1000-1500kg/24h |
| 14 | Cycle time | |
| 15 | Max. product height | 80mm |
Production Flowchart
Finery Tableware Machine
Hanson pulp molding thermoforming technology make breakthrough of industrial bottleneck, based on specific product, the wet product moisture can be less than 60%, elctricity heating consumption(heating only) can be less than 1800kwh/ton finish product
Why Choose Us
Intelligent pulping system
Intelligent pulping system
Online overflow
DCS control
PID frequency conversion control technology
Overall plant design& layout
Overall project management
Turn key project
International service
Whole life support
Pulp molding thermoforming machine
Tableware machine
Cutlery machine
High industrial package machine
Leak-proof lid machine
Mold design and manufacturing
Professional mold designing
High-precision processing ability
Three-coordinate detecting mold solution
Post-process automation
Intelligent transfer solution
Automatic visual inspection
Automatic counting
Auto packaging
Technique output and other services
Hanson College
Professioanl technical team
International installation&commissioning
Online support
