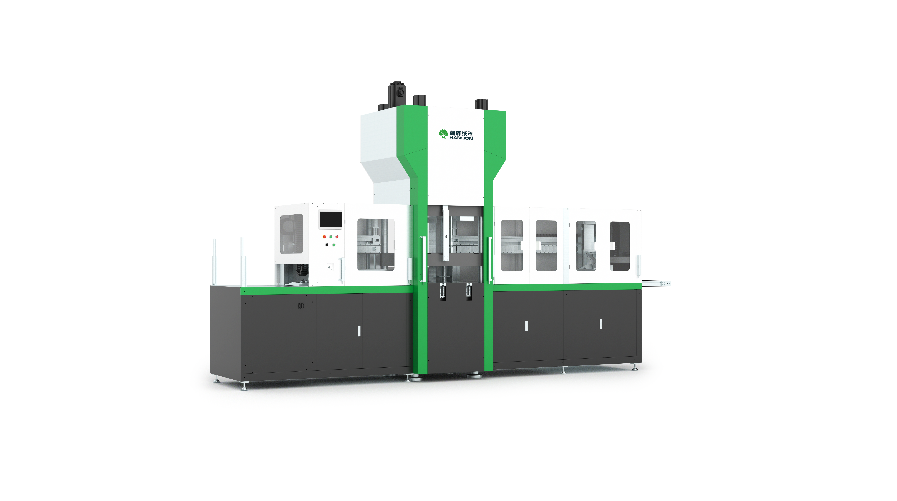

Fully Automatic Industrial Packaging Offline Die-Cutting Production Line LHNS-8560

LHNS-8560 is an offline die-cutting production line designed for industrial packaging products. After manual loading, the machine automatically performs feeding, die-cutting, waste removal, and finally conveys the finished products out through a conveyor belt. The automated process reduces labor requirements while ensuring safe and reliable operation.

The main sliding components adopt a linear guide structure, improving machine rigidity, positioning accuracy, and service life. The die-cutting machine utilizes a servo-driven linkage mechanism, providing stable operation and high precision. The feeding, conveying, die-cutting, and unloading systems adopt a fully electric control solution, enabling more precise and coordinated motion control. The production line features high-speed operation, stable performance, and reliable efficiency.

Advantages of Products

We regard the demand of pulp molding production line is higher output , less energy consumption and stable performance of the machine,following this direction, we see highly important of our R&D.

3 0 %+

Capacity per sqm Up by

1 0 %

Heating Consumption Less by

1500 0 +

Mold Deep Cleaning Cycle

20000 0 +

Daily Output of Ф90mm lid

Commonly Used Raw Material

Primary Pulp Board from the following plants

The commercial primary pulp board for producing premium industrial pulp package is usually the chemical pulp or chlorine-free ECF pulp ,can be purchased from paper making manufacture.A combination of sugarcane ,bamboo and coniferous wood fiber pulp are the raw material applied more for the excellent performace of the pulp tray in replacing plastic tray.

Mainly used to Produce

Mainly used to Produce Phone tray, tablet tray,earphone tray,watch tray, mouse tray

MACHINE SPECIFICATIONS

ZAB8060 High-end industrial package machine
1	Outer dimension (LWH)	3600mm1750mm3100mm
2	Platen size	800mm*600mm
3	Forming method	reciprocating
4	Pulp feeding style	accurate quantitative pulp feeding (external overflow style)
5	Heating method	electric/thermal oil heating
6	Product transfer method	transfer by mold
7	Forming pressure	8T
8	Hot pressing pressure	30T
9	Machine drive mode	servo + lead screw & hydraulic system
10	Control system	PLC+ touch screen
11	Drying method	dry in-mold
12	Capacity	200-500KG/22H
13	Cycle time	32-120 seconds/drop (depends on the product)
14	Max. product height	120mm

Production Flowchart

We are ONE-STOP SOLUTION PARTNER of PULP MOLDING TURNKEY PROJECT

播放视频

Premium Package Machine

The main character of our premium industrial package production line is the accuracy in delivering products which allows the machine to produce products of complex structure and zero draft angle .

Why Choose Us

SMART DCS PULPING SYSTEM

Pulping system ,no backflow pulp,less dirt White water ,compressed air,vacuum system Auto feeding system,high pressure water system Intelligent DCS control

WHOLE PLANT DESIGN & LAYOUT

Project feasibility analysis & Tailored machine proposal Tailored ROI analysis Factory layout design Factory foundation/trench/pipeline design

MOLDED FIBER THERMOFORMING MACHINE

Molded Fiber Tableware Thermoforming Machine Pulp Molding Industrial Package Making Machine Molded Fiber Leak-proof Lid Making Machine

TOOLING DESIGN AND MANUFACTURING

Professional and Experienced Tooling Designer; Self-own High-precision Processing Center; Three-coordinate Way Detecting Mold.

POST-PROCESS AUTOMATION

Intelligent robot transfer,auto stacking; Automatic visual inspection equipment; Automatic counting,auto bagging; Auto boxing,auto packaging

TRANSFERRING KNOW-HOW

Hanson College with university tutors & courses; Training a team of technical personnel Guide installation,machine running and maintenance Comprehensive on-site technical support
