Cup Pulp Molding Tableware Machine: Production Guide

A cup pulp molding tableware machine produces the most stack-sensitive product in molded fiber. Cups combine deep geometry, thin walls and a rim that carries the entire structural load of the part, then stack fifty high into a sleeve that a barista pulls from one-handed. Succeeding at that combination demands different process decisions than plates or bowls, and buyers who specify a cup line using plate thinking pay for the shortcut at the forming station.

This guide covers cup-specific forming challenges, wall weight strategy, rim and stacking strength, hot-fill and lid compatibility, and how to structure the tooling investment. It draws on ten years of exporting pulp molding equipment to drinkware and food service producers.

Forming Challenges Unique to a Cup Pulp Molding Tableware Machine

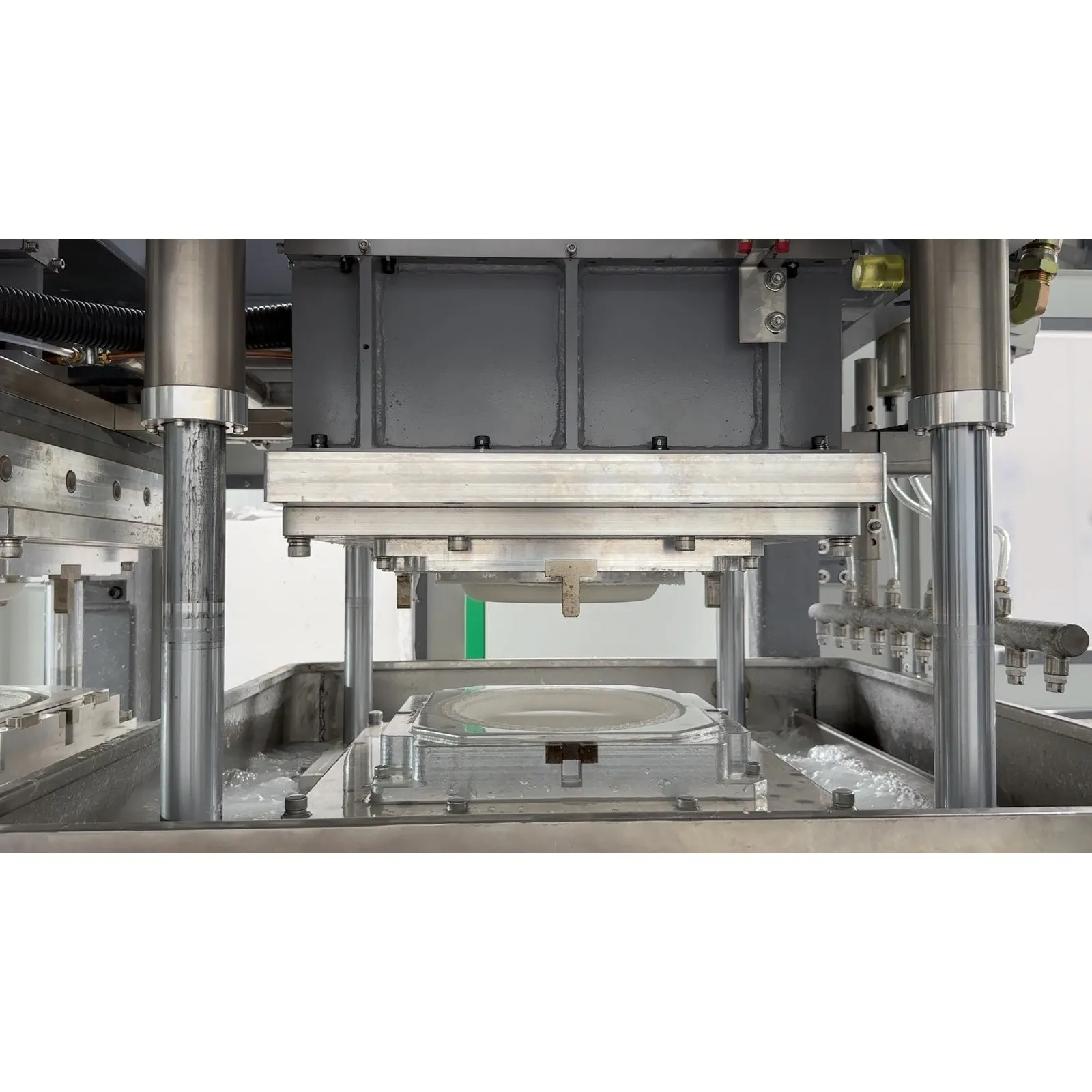

A cup is a tall, narrow cavity with a small open face, which concentrates all the classic deep-draw problems and adds one of its own. Vacuum must build fiber up a parallel wall while keeping the wall thin, because an over-heavy cup costs fiber on every piece for the life of the program. Mold mesh selection, vent placement along the wall and a vacuum profile that ramps as the mat builds are what separate uniform cups from cups with heavy bases and starved rims.

Transfer timing matters more than in shallow products too. A wet cup leaving the forming mold deforms under its own weight if moved too slowly or gripped too firmly, and the press schedule must consolidate that thin wall without crushing the rim it just built. Suppliers with genuine cup experience bring proven transfer and press recipes to the commissioning, which shortens the learning curve by months.

Wall Weight Strategy and Cost Control

Cup economics live in grams. A gram saved per cup multiplies across millions of pieces into serious fiber money, but every gram removed thins the margin between a serviceable cup and one that softens in a customer's hand before the coffee is finished. The productive path is gradual optimization after stabilization: establish a robust baseline recipe, then shave wall weight in small steps with hot-fill testing after each one, instead of launching at the lightest theoretical wall.

Rib design contributes more than wall weight does. Vertical fluting multiplies stiffness for almost no material, hides mesh marks from the forming surface and gives the cup the tactile quality consumers associate with premium fiber drinkware. Treat rib geometry as a partnership between your product designers and the supplier's mold engineers, because ribs that form well in pulp differ subtly from ribs drawn for plastic.

Rim Strength and Stacking Behavior

The rim does three jobs at once: it carries stacking loads, it meets the lid, and it is the surface the customer's lips judge. A rim rolled too thin cracks under stack weight; rolled too heavy it wastes fiber where consumers feel it most. Test stack strength with a full-height column weighted to your worst-case distribution scenario, and test rim quality with a simple drop test onto the rim itself, because the packing station will perform that test accidentally regardless.

Stacking behavior separates into two questions: how many cups nest per sleeve, and how much force releases one cup from the stack. Deep nesting flatters freight economics but can wedge cups together until a barista fights the sleeve; loose nesting pulls smoothly but ships air. The taper angle and the surface finish of the outer wall decide the balance, and both are mold-level decisions, so settle them with the tooling engineer rather than after the first container ships.

Hot Liquids, Lids and Real Service

Cups live or die in service. A paper coffee cup holds ninety-degree liquid for twenty minutes while a hand grips the wall, and fiber cups must do the same while staying rigid enough to feel safe. Waterproofing chemistry, wall weight and fluting depth together determine service life, so test with the actual beverage temperature and duration your customers serve, not with room-temperature water that proves nothing.

Lid compatibility belongs in the cup specification from day one. Whether your program pairs with a fiber lid or a plastic lid, the rim must be designed to the lid's fit band, and samples from both sides need joint testing before launch. Programs that design the cup first and discover lid fit later pay for a tooling revision that an early drawing review would have caught for free.

Tooling and Size Changeovers

Cup portfolios span several sizes, and each size is a mold set with its own recipes. The commercial question is changeover speed: how long does a switch from an eight-ounce tool to a sixteen-ounce tool take, performed by your team? Quick-change mold location, automatic recipe recall and sensible utility connections turn that answer from a shift into an hour. The mold tooling program at Hanson manufactures cup molds alongside the machines they run on, which keeps geometry and press schedules engineered together.

Spare tooling strategy matters as much as initial tooling. Cups run continuously in most programs, which wears mesh and knives steadily, and a program that stops for want of a spare mold set loses weeks of production. Budget a maintenance rotation from the start, and use commissioning to document the wear patterns your furnish produces on cup tooling specifically. The factory overview shows the machining capacity that supports both production and spare tooling programs.

Rim Geometry and Drinking Comfort from a Cup Pulp Molding Tableware Machine

Customers judge a fiber cup at the rim long before they think about the pulp inside it. A rolled, smooth rim feels safe on lips and resists softening; a raw trimmed edge wicks liquid and reads as unfinished. The difference lives in tooling detail and in how the forming mesh supports fiber deposition at the highest point of the cup, where drainage is fastest and fiber lay is thinnest.

Rim stiffness also decides whether a cup survives the fill line. Baristas press lids on with real force, and a soft rim ovalizes, then leaks. Design wall thickness distribution deliberately, with material concentrated at the rim and base corners rather than spread evenly, and validate with a simple press test on the filled cup. Plants refining this balance document their progress in the process notes on the blog and through the engineering support channels their supplier provides.

Stacking, Nesting and Counting at Cup Speed

Cups stack, and that single geometric fact drives a surprising share of downstream engineering. Too little draft and cups jam in the stacker; too much and a column of two thousand cups occupies a warehouse bay. Nesting depth is negotiated between the cup plant and filling customers, because a taller stack slows loading and a shorter one wastes packaging.

Automated counting seals the program. Cups counted by weight drift with moisture, and customers who order five thousand cups do not accept four thousand eight hundred. Optical counters, stack-height sensing and bagging integration each carry trade-offs between capital and labor, and the right answer depends on local wage reality more than on technology preference. Review how counting and packing cells attach to the forming line layout before the floor is poured, not after.

Frequently Asked Questions

How light can a molded fiber cup be?

Lighter every year as mold precision improves, but always subject to service testing. Establish the lightest wall that passes your real beverage test with margin, then hold it with process discipline, rather than chasing a gram target that fails in the field.

Do fiber cups need a liner?

Most commercial fiber cups rely on waterproofing chemistry in the furnish instead of a separate liner, which keeps the product fully fiber-based. Some high-duration applications still use coated approaches, but that changes both compostability claims and cost structure.

Can one line serve cups and food trays?

Technically yes with separate mold sets, but cup programs reward dedicated lines because scheduling and process control stay clean. Mixed lines work for small plants testing multiple products before committing volume.

Final Thoughts

Cups reward engineering discipline more than any other tableware product. Form thin, press true, roll the rim properly and test everything with real beverages. Plants that master those four habits produce cups that compete with paper and plastic on experience, not only on ethics.
